Fish Skinning Machine Series 460

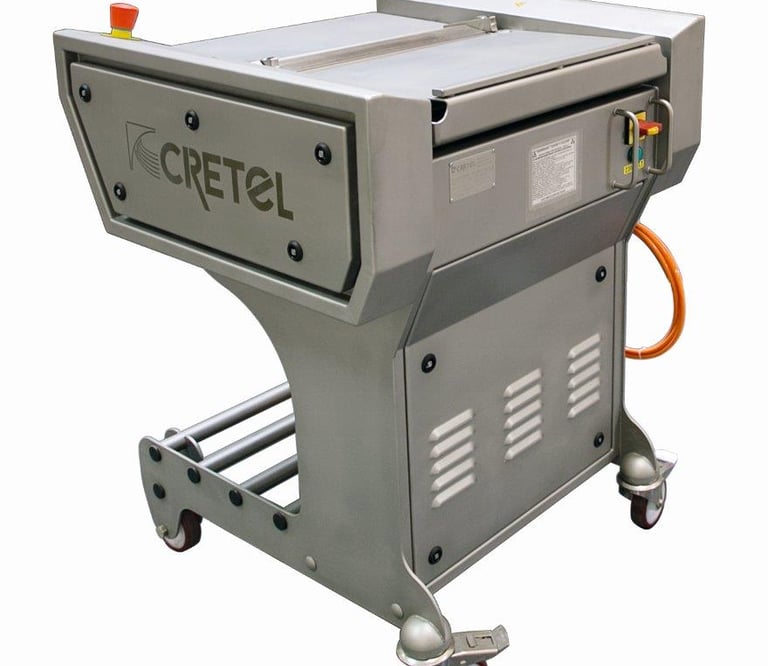

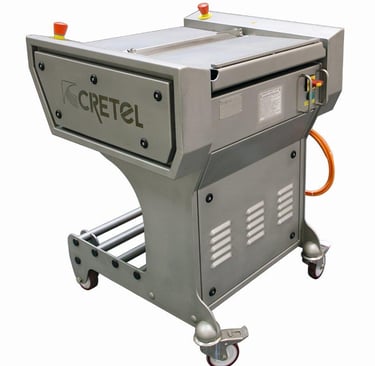

ndustrial Fish Skinning Machine Model 460VH
Series 460 are designed for intensive industrial use. The model 460VH is conceived to process fish continuously at high speed with the best possible yield. The enhanced sanitation, the reduced maintenance and operation costs and the optimized ergonomics make the 460VH an outstanding piece of equipment.
Full stainless steel construction. Free standing on castors.
Extra wide 460mm (18 inch) skinning shoe.
Hygienic and ergonomic design with rounded corners.
Double bearing system for consistent skinning result.
Built-ion water spray system with adjustable volume and auto-shut valve to minimize water consumption.
All electrical parts in splash proof housing.
All joints and seams are completely welded to avoid penetration of moisture and dirt.
No tools required to assemble/disassemble the skinning shoe.
No tools required to change the skinning blade.
Easy and fast access to all electrical and mechanical parts.
Vandal proof switches and auto-cut safety switches.
Delivered complete with set of spare blades.
Conform to latest CE directives.
Users:
Fishmongers
Fish Processors
Processors of salmon, tilapia, pangasius
Applications:
Precision removal of skin from most species of fish, including Nile perch, skate wings, monkfish, freshwater catfish, squid and cuttlefish, dogfish, shark, fresh and smoked salmon, tilapia, flounder, plaice and other flatfish, whiting, cod, haddock, and other whitefish..
Options:
Variety of toothed rollers to suit various applications
Reduced roller speed
Various voltages
Unit with lower working height

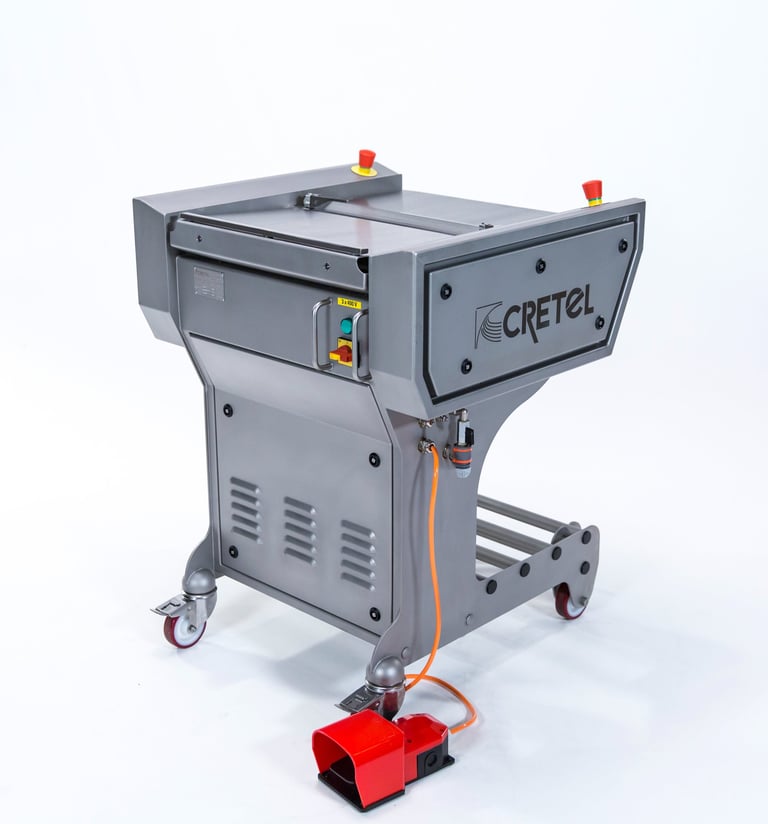

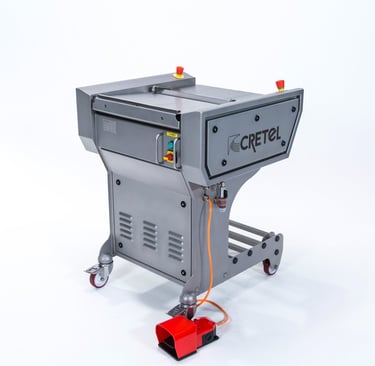

Mechanical foot switch
Accessories :
Infeed table for fast and easy supply of fish to skinning system.
Storage infeed bin to facilitate the supply of small size fish (such as pout, whiting), cuttlefish, scallops, ....
TECHNICAL DATA
Capacity 40 - 150 pcs/min
Skinning Width460 mm
Weight 195 Kg
Motor 3x220 VAC 60 Hz / 1.1kW
Dimensions (mm) 770 x 800 x 1010 (L x W x H)
