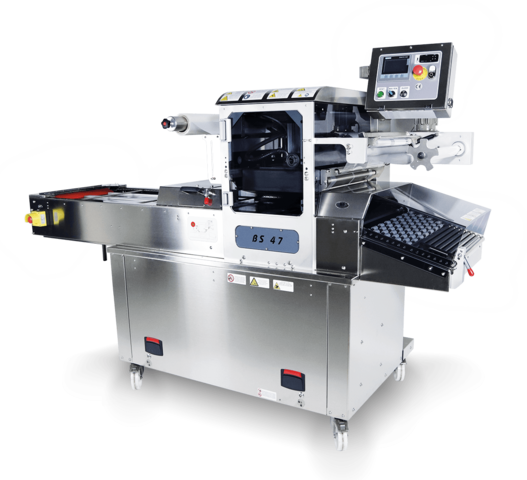

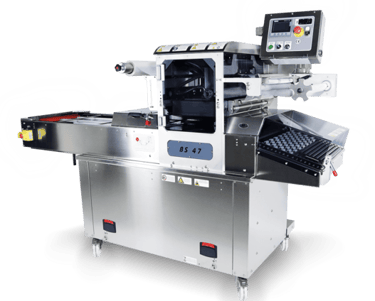

BS 47
Maximum sealing:
400 × 275 mm
Maximum shell height:
on request
Cycles:
4 - 5 / 8 - 10 / Min. (with/without vacuum)*
External dimensions:
2,50 × 0,99 × 1,66 m**
Maximum film width:
470 mm
Compressed air supply:
6 bars
Vacuum pump:
100 m³/m
Weight:
550 Kg
Electrical connection:
3 phases, 230 VAC, 60 Hz***
Power:
3,9 kW
