Vacuum Sausage Stuffer

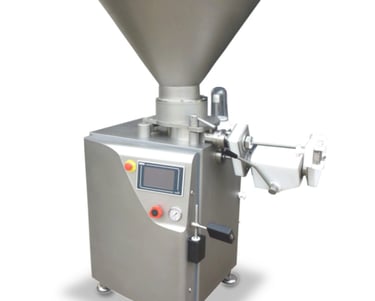

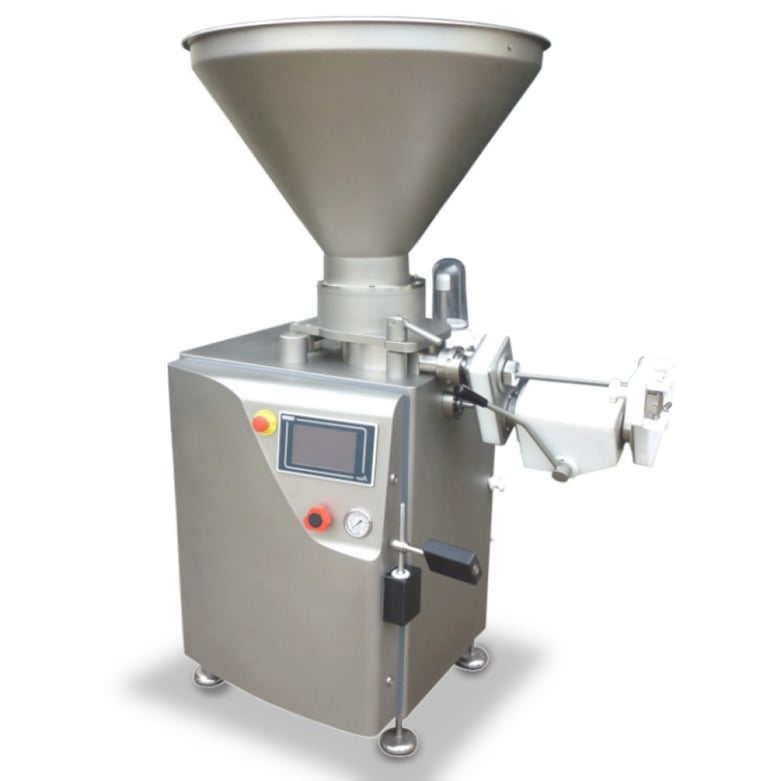

Vacuum Stuffer Mod. ECV-3000

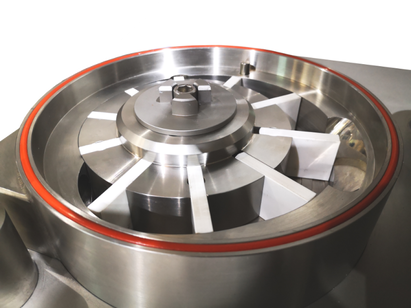

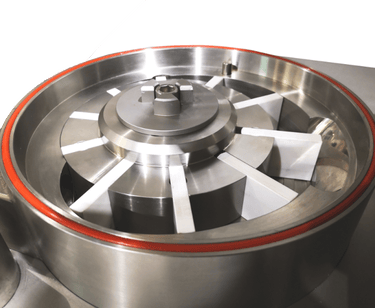

The exclusive design of the rotor assembly with stuffing paddles, together with the programmed action of the vacuum, reduces waste by avoiding smearing and the formation of bubbles inside the dough, providing greater portioning precision
Meat feeding system by 10-paddle rotor
Adjustable stuffing speed and pressure.
Vacuum group consisting of pump and condensation filter.
Folding hopper and removable rotor for easy cleaning.
Machine with a hygienic, silent and highly reliable design.
Prepared for connection with forming and/or portioning machines.
Made of AISI-304 stainless steel.
Control panel with programmable microprocessor and touch panel.
Options:
250L feed hopper.
Adaptation for twisting.

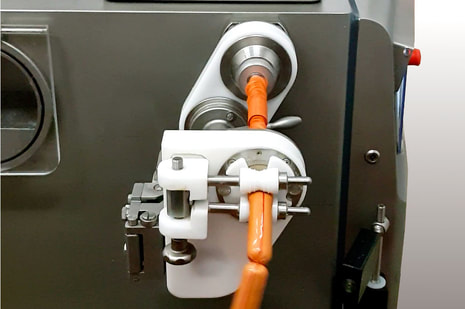

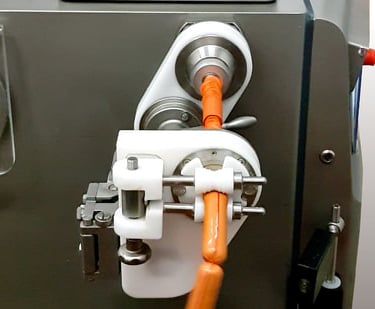

Twist linker
Electric casing feeder.
Socket for forming and/or portioning machines.
Technical data
600 portions/min max
Maximum output production 3000 kg/h max.
Stuffing pressure 30bar max.
Hopper capacity 85, 120L or 250L. (optional).
Casing Caliber 70mm max.
Accessories included 12mm (conical), 20 and 30mm funnels; 1 set of tools and 2 spare vanes.
Vacuum pump 21m3/h
Total electric power 5kW
Overall dimensions (LxWxH)800x750x1650mm / 870x850x1730mm / 1050x1050x1900mm
Weight 400kg.

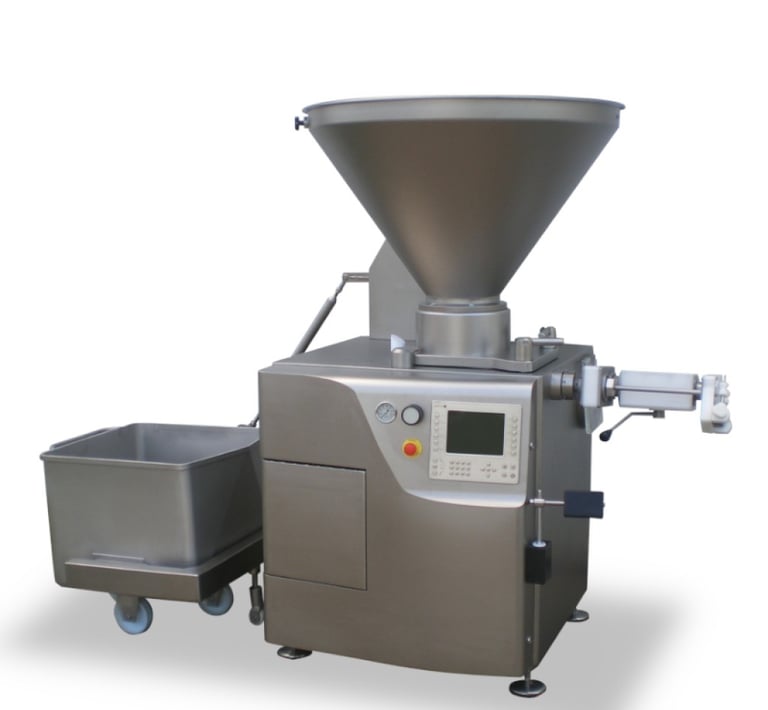

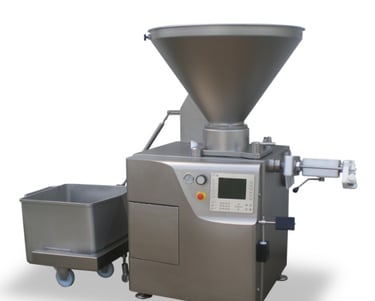

Vacuum Stuffer Mod. ECV-6000
Automatic Slicer Fillet 611
Meat feeding system by rotor with 7 or 14 paddles.
Adjustable stuffing speed and pressure.
Vacuum group consisting of pump and condensation filter.
Folding hopper and removable rotor for easy cleaning.
Anti-vault breaker set.
Hydraulic loader for cutter carts of 200L.
Machine with a hygienic, silent and highly reliable design.
Prepared for connection with forming and/or portioning machines.
Made of AISI-304 stainless steel.
Control panel with programmable microprocessor and touch panel.
There is no preparation for twisting connection.
Options:
Hydraulic loader for cutter carts of 200L. (1,2 kW)
Adaptation for twisting set.
Twisting set (2.5kW).
Automatic hand set.
Electric casing feeder.
Connection for forming and/or portioning machines.
Technical details:
1200 portions/min max.
Portion weight from 10 to 10,000gr.
Max output production 6000 kg/h max
Stuffing pressure 45 bar max
Hopper capacity 250L
Caliber 70mm max.
Accessories included 12mm (conical), 20 and 30mm funnels; 1 set of tools and 2 spare vanes.
Vacuum pump 21m3/h
Total electric power 10kW
Overall dimensions (LxWxH)1355x1355x1890mm
Weight860kg
